Product details
Servitec

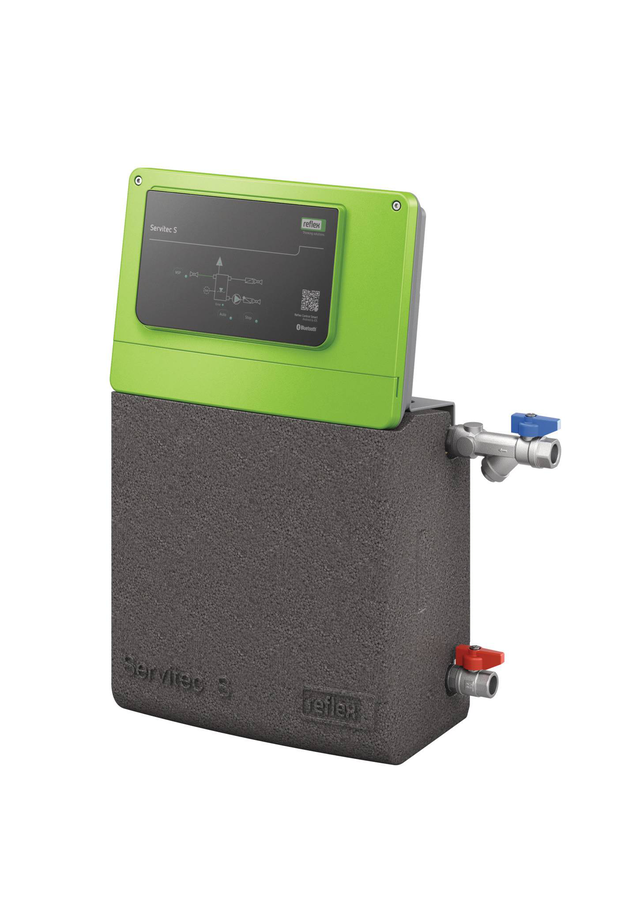

Vacuum spray-tube degassing system for system and make-up water degassing in sealed heating water and cooling circuits, configured as a fully automatic multi-function unit with “auto-start” function and automatic hydraulic compensation of the degassing process as well as control and monitoring of the make-up water function.
Vacuum spray-tube degassing system for system and make-up water degassing in sealed heating water and cooling circuits, configured as a fully automatic multi-function unit with “auto-start” function and automatic hydraulic compensation of the degassing process as well as control and monitoring of the make-up water function.
Suitable for the media water and water/glycol mixtures up to a mixing ratio of 50/50%.

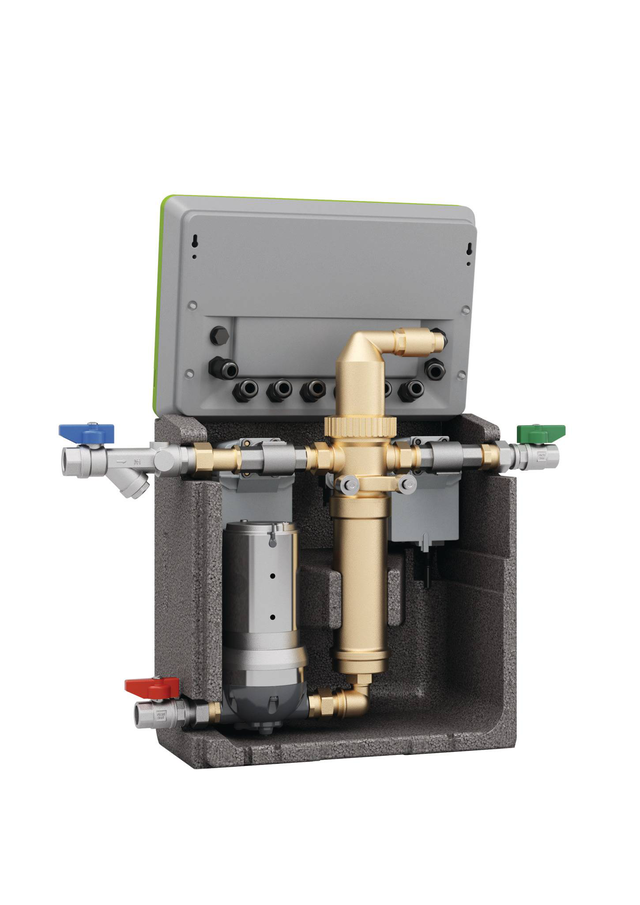

Functional unit comprising hydraulic part designed for wall mounting and electronic, ergonomically arranged Control Smart controller with CE marking. Degassing takes place within the hydraulic part using a diaphragm pump in conjunction with a vertically arranged brass vacuum spray tube. This is equipped with a vacuum spray nozzle, dipstick-tube degassing unit and pressure monitoring. To protect it against dirt, the unit as a whole is located in a housing made from expanded polypropylene with an opening maintenance cover. The Control Smart controller is integrated in a robust plastic housing in which both the power and communication electronics and the control panel with dirt-resistant plastic foil keyboard are housed. Bluetooth is integrated as standard as a communications interface. The controller has a fully automatic microprocessor controller with time function, differentiating error and parameter memory, LED display of the operating modes and general error messaging, visualisation of the control states for system pressure and all relevant operating and fault messages using the Control Smart App via Bluetooth communication. Communication electronics comprising:- RS485 port (galvanically isolated) for the connection of optional communication components
- Including Modbus RTU protocol
- Floating output for forwarding of the group message
- Digital input for signal processing of a contact water meter
- Analogue input for measuring the conductivity
- Input for makeup functional request via external signal
- Automatic setting of the time and date
- Setting and adjusting the minimum operating pressure p0
- Switch-on times for permanent and interval degassing can be freely specified and entered by the operator
- Free configuration of day of the week and time for interval degassing operating mode including a summer function
- Status, warning and error display relating to facility pressure and operating conditions including diagnostic instructions and handling recommendations
- Automatic software updates
Downloads
Documents
Drawings
BIM data
Product photos
Accessories
recommended
7945725 - Commissioning Cat. 3
Service description:
commissioning category 3 for a standard system in the product ranges Reflexomat Compact RSC / Servitec S / Reflex Hydroflow mains water station by Customer Service comprising:
While it is entirely possible for customers to put a recently purchased system into service themselves, there are a number of reasons why commissioning by Reflex is a better idea.
the service can take place within the local country inside about three weeks, internationally within about six weeks after placing of the corresponding order.
Services provided by Service are net! The price does not include any site waiting times or work arising from improper installation or improper condition.
Programming of the expansion and bus modules does not form part of commissioning. Programming is billed separately based on time and expenditure.
commissioning category 3 for a standard system in the product ranges Reflexomat Compact RSC / Servitec S / Reflex Hydroflow mains water station by Customer Service comprising:
- Travel to and from site,
- Setting of the system to the operating parameters specified by the customer,
- Checking the settings and operating parameters, and the system's performance and function in the overall system,
- Fillsoft and Fillset are also checked
- All set values are documented in a log.
- electrical and hydraulic connection of the control unit, the accessory components and filled supply system.
- The expansion vessels of the pressurisation station must not be filled with water.
- A sufficient supply of filling water must be provided.
While it is entirely possible for customers to put a recently purchased system into service themselves, there are a number of reasons why commissioning by Reflex is a better idea.
- Certainty that the system is set up for optimum operation
- Excluding of possible damage due to incorrect commissioning thus reliability and avoidance of time and costs for downtimes
the service can take place within the local country inside about three weeks, internationally within about six weeks after placing of the corresponding order.
Services provided by Service are net! The price does not include any site waiting times or work arising from improper installation or improper condition.
Programming of the expansion and bus modules does not form part of commissioning. Programming is billed separately based on time and expenditure.
optional
7945726 - Commissioning add. Cat. 3
Service description:
commissioning of an additional system, category 3, for a standard system in the product ranges Reflexomat Compact RSC / Servitec S / Reflex Hydroflow by the customer service, comprising:
commissioning of an additional system, category 3, for a standard system in the product ranges Reflexomat Compact RSC / Servitec S / Reflex Hydroflow by the customer service, comprising:
- Adjustment of system to the operating parameters specified by the client,
- Checking the settings and operating parameters, and the system's performance and function in the overall system,
- Fillsoft and Fillset are checked too
- All set values documented in a report.
- electrical and hydraulic connection of the control unit, the accessory components and filled supply system.
- The expansion vessels of the pressurisation station must not be filled with water.
- A sufficient supply of filling water must be provided.
