Hot water storage and buffer tanks

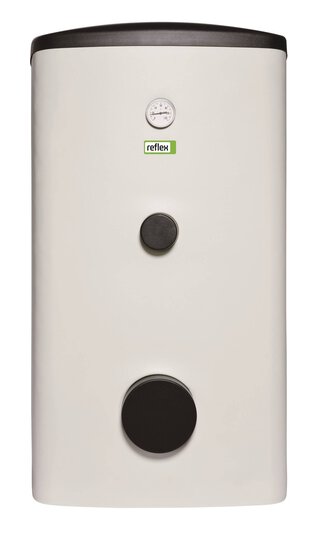

Reflex Storatherm Aqua tanks are used for heating and storing potable water. Due to the wide variety of types and the extensive range of accessories, there are numerous building services applications in the residential, commercial and industrial building sectors.
For corrosion protection, all Reflex Storatherm Aqua are provided with a hygienic enamel coating in accordance with DIN 4753 Part 3 in conjunction with a magnesium anode.

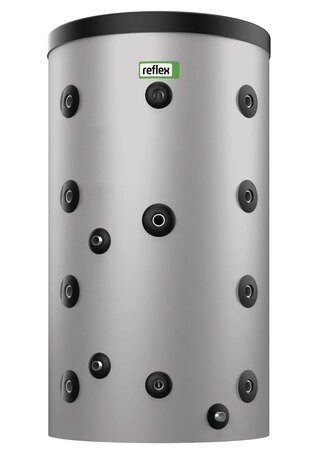

The buffer tanks operate analogously to stratification tanks. In other words, they act like a heat battery, decoupling heat generation from heat consumption both in time and hydraulically.
This is an essential prerequisite for the supply of energy from waste heat, solar systems, CHP and other heat generators, the thermal emission of which is not directly oriented to matching demand. Buffer tanks cover an extremely variable application area; essentially they are used as a primary store for supplying heating systems.
Execution:
- Designed according to DGRL, approved according to Sinus works standard or AD 2000 rules
- up to DN 2,400 and 25,000 liters
- Connections according to your specifications
- For hot and cold water systems

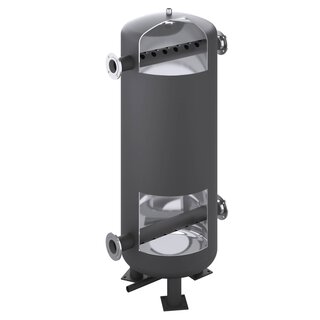

- Optionally with pipe bends, nozzle pipes or mixing and layering plates
- Other individual installations after consultation
- On request including static proof (e.g. wind loads for outdoor installations)
- Hand hole fastener 100 x 150 mm or
- Manhole closure 320 x 420 mm
- Insulation design: polystyrene + polyester fiber fleece
- 1.3mm polystyrene
- 110 mm polyester fiber fleece 15 kg/m³ (WLG 0.038) fire class B1
- Terminal block lock
- PVC cap incl. 110mm insulating cover fleece
- 60mm floor insulation
- Not diffusion-tight
Configure individual buffer storage with the ProSinusX.
You can find an inquiry and order form for an individual buffer tank here.
Expectations are growing constantly when it comes to the comfort of our own home. At the same time, environmental protection demands reductions in energy consumption. Reflex potable water and buffer storage tanks make it possible to combine both aspects effectively. Type diversity and an extensive range of accessories open up a multitude of applications in private building services, public buildings and industry always with the aim of creating hot water solutions that are convenient and efficient.
